Q5/08-FH12-50

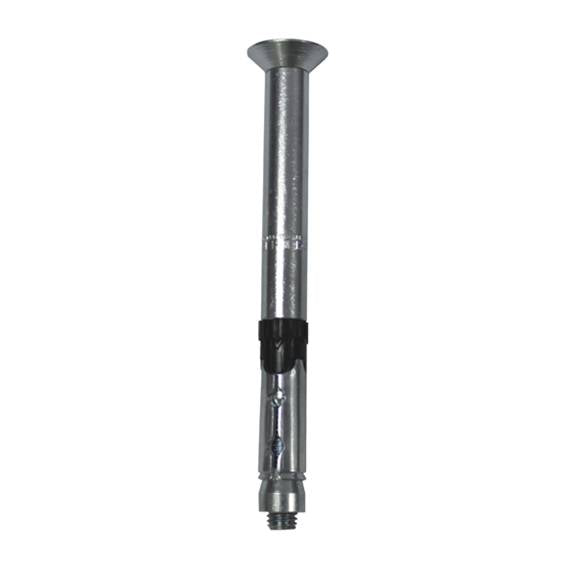

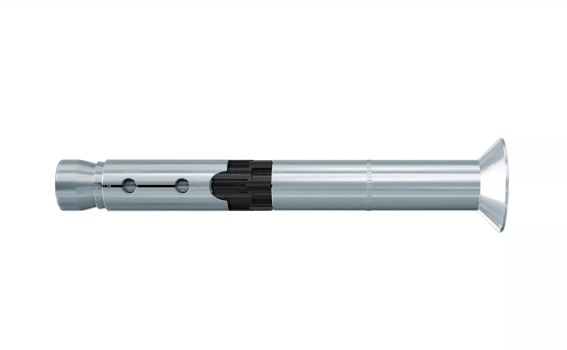

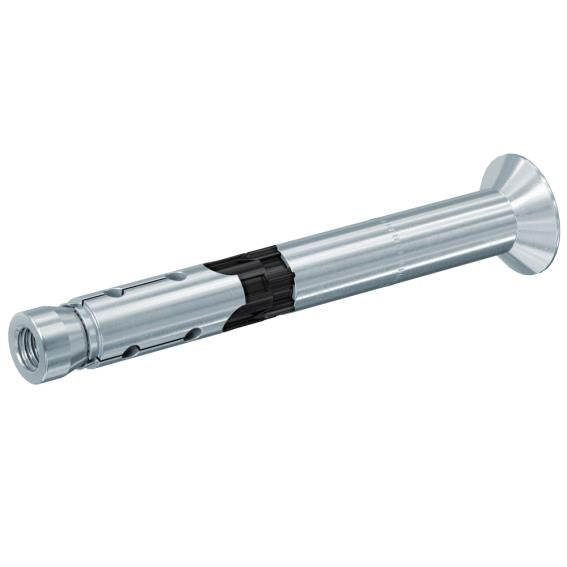

Heavy duty anchor with countersunk screw

Material: Steel, Surface finish: Galvanized, L: 125, Use: Anchoring, M: 8, d: 12

64,40 Kč
without VAT
77,92 Kč
with VAT
PCS
Stock availability
SK Krompachy > 1500
CZ Říčany u Brna 48
CZ Hradec Králové 0
CZ Praha Otice 4
CZ Moravany Brno 50

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

The Fischer high-performance anchor with countersunk head is a sleeve anchor made of zinc-plated steel. The anchor is set in the time-saving through-type installation. When tightening the anchor, the cone is pulled into the expansion sleeve and expands it against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs the torque slippage. This means that the fixture is pulled towards the anchoring base. The Fischer high-performance anchor FH II SK with countersunk head is ideally suited to fix railings, staircases, and ladders in cracked and non-cracked concrete.

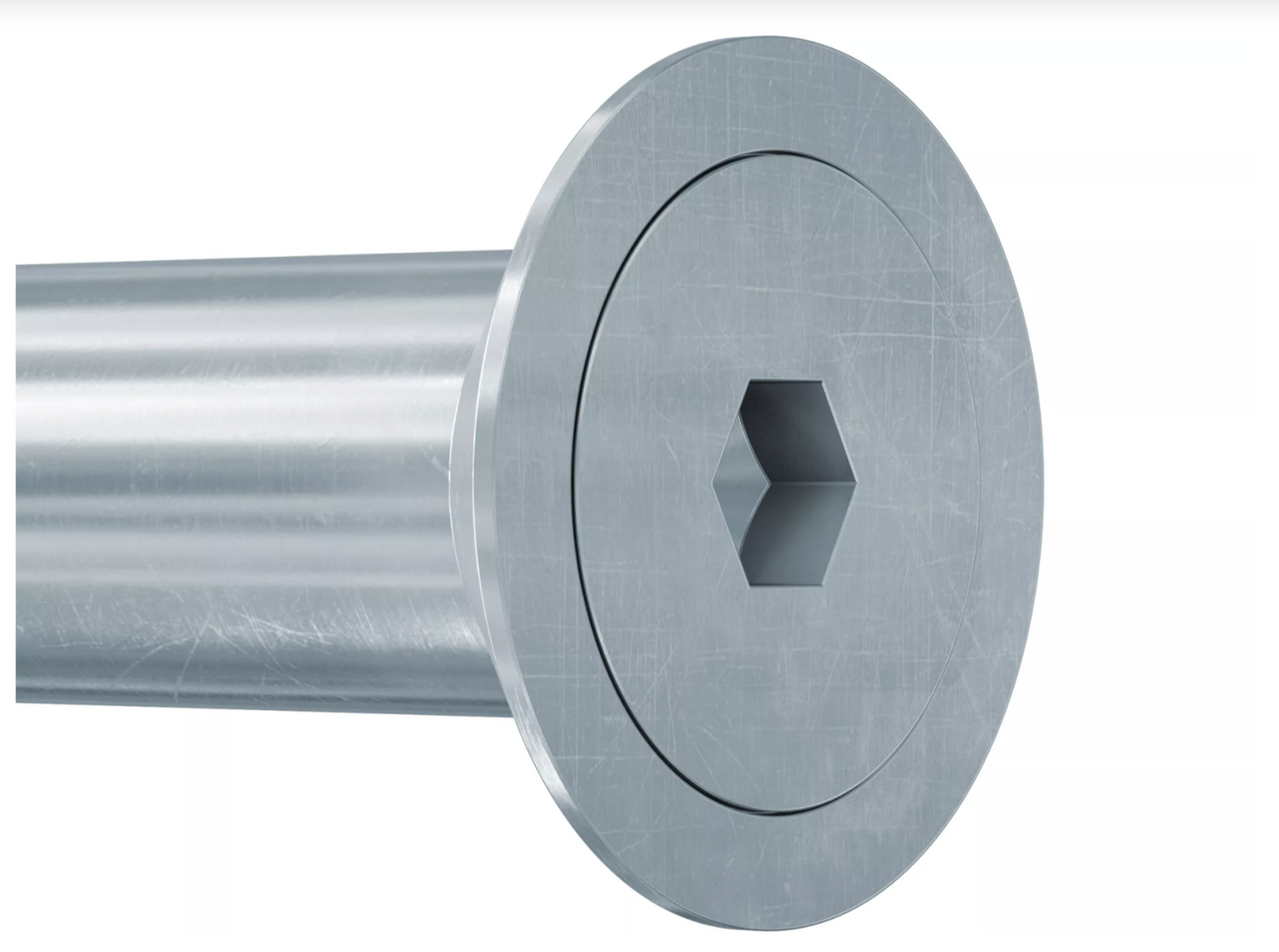

With countersunk head for assembly that is flush to the surface.
The international approvals guarantee maximum safety and maximum performance. Also for applications in earthquake regions (seismic C1 and C2).
The ideal combination of screw shank and sleeve enables a high transverse load capacity and fewer fixing points.
The optimised geometry intelligently reduces the setting energy and thus ensures a force-saving assembly.

ETA-approval: YES

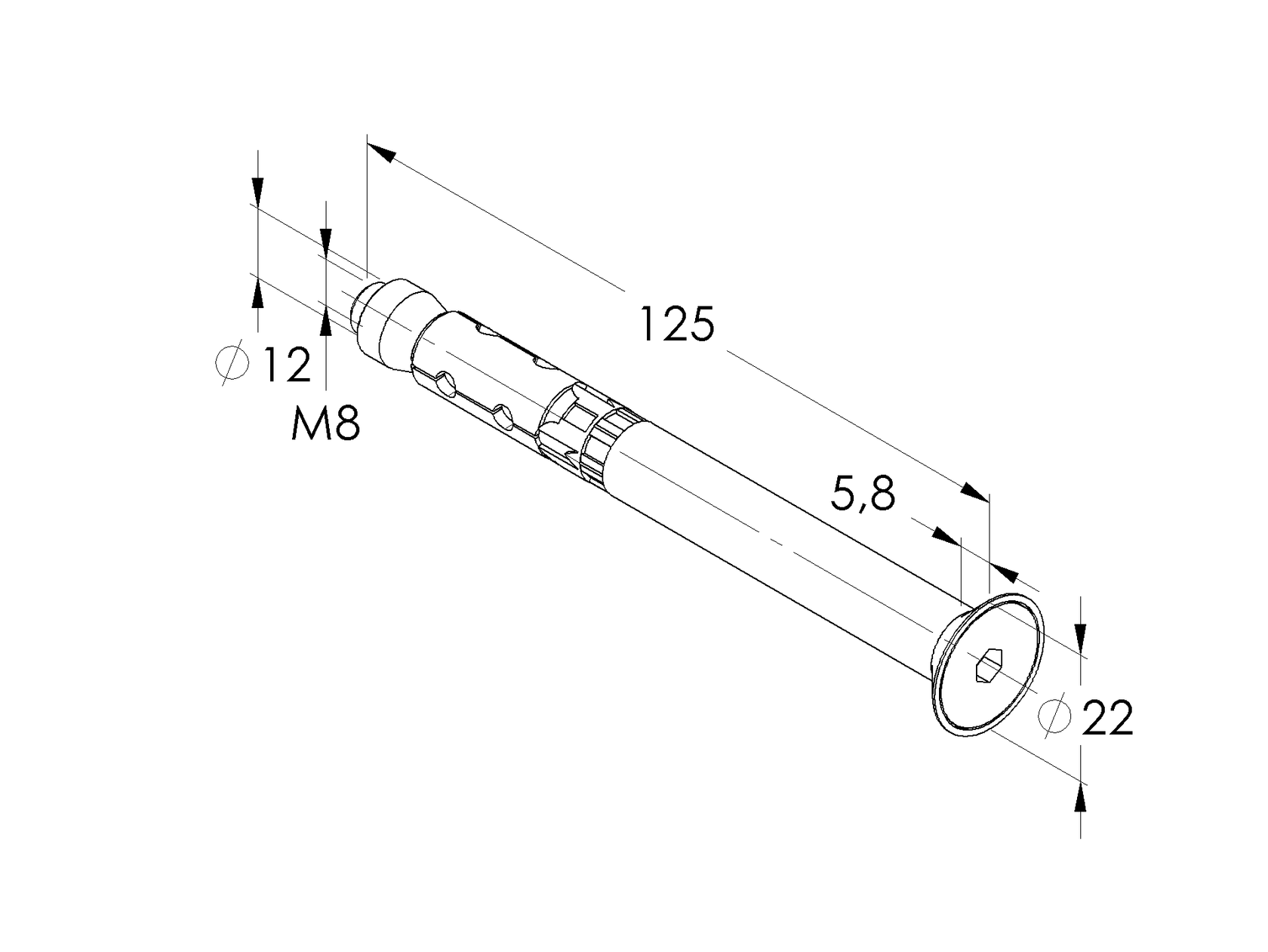

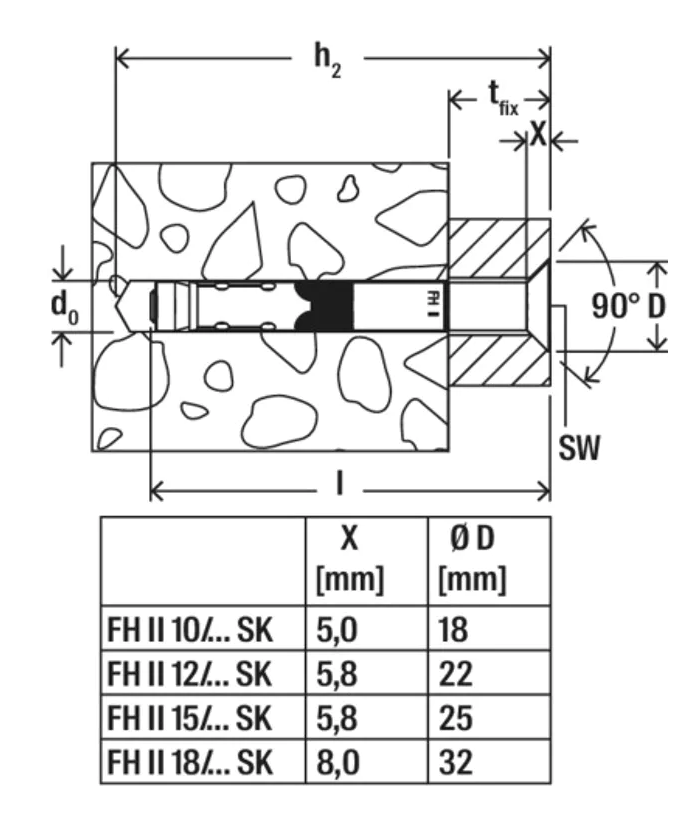

Drill diameter (d0) : 12 mm
Min. drill hole depth for through fixings (h2): 130 mm
Max. fixture thickness (t fix): 50 mm
Thread (M): M8
Packaging: Folding box
Amount: 25 pcs.
GTIN (EAN-Code): 4006209449196
Seismic-Approval: C1 / C2

Parametre

Vysoce výkonná kotva se zápustnou hlavou
Material
Defines the material from which the product is made.
Steel
Surface finish
Surface finish of product
Galvanized
L
Length parameter of the product
125
Use
Anchoring
d
12
M
8

Na stiahnutie

STEP
STEP file
PDF
Parametric drawing
PDF
Document for download
PDF
Document for download
PDF
Document for download
PDF
Document for download

Katalog

Povinný sortiment

Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

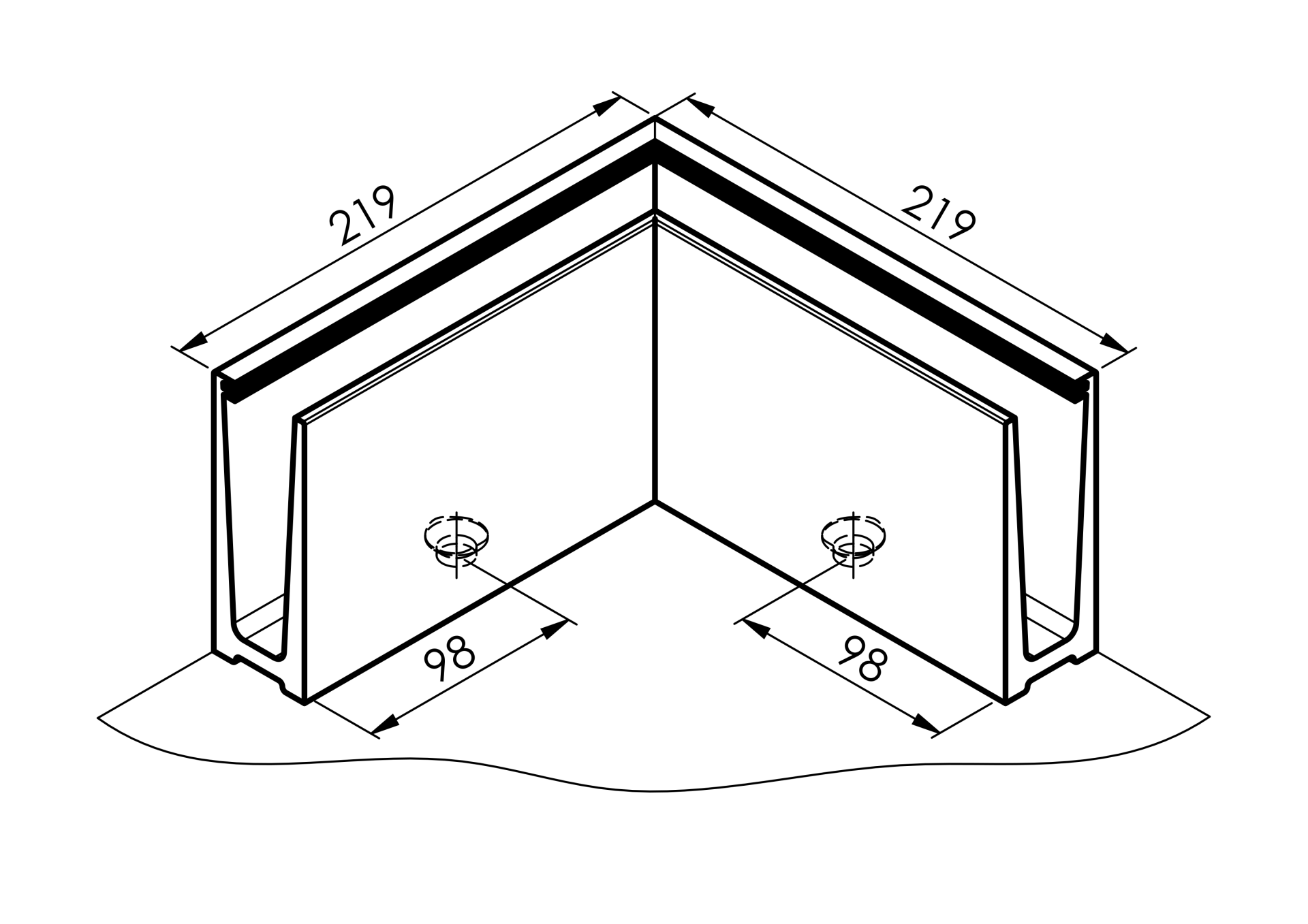

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

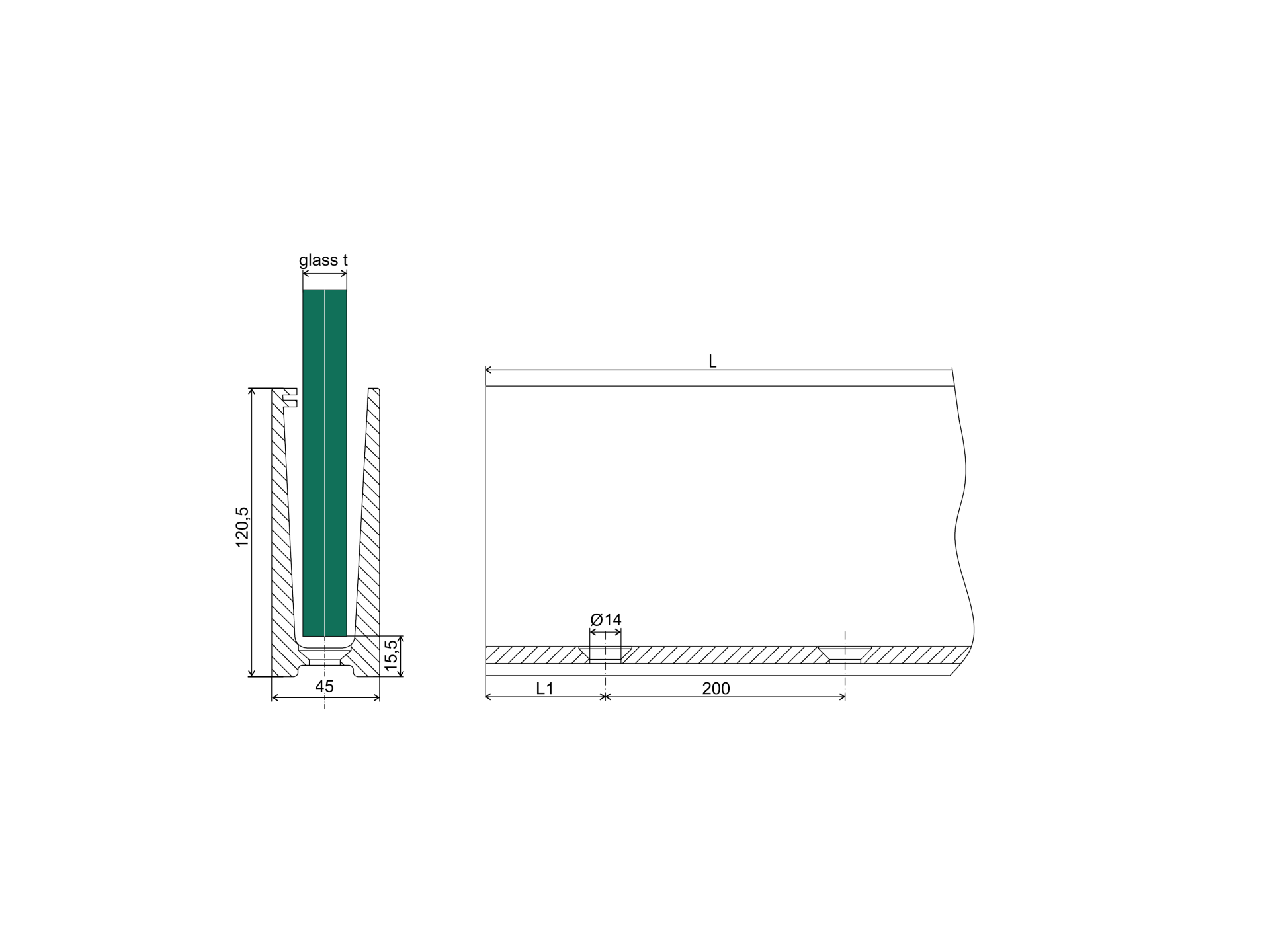

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL AL/0004-1250-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.719,20 Kč
without VAT
2.080,23 Kč with VAT
Low stock (14 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Alternatives
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.280,00 Kč
without VAT
8.808,80 Kč with VAT
In stock (98 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.863,20 Kč
without VAT
9.514,47 Kč with VAT
In stock (403 units)
PCS
Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-ECO-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
5.911,70 Kč
without VAT
7.153,16 Kč with VAT
In stock (581 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Pomůcka na montaž skla do AL-PRO profilů

Glass mounting tool for AL-PRO profiles AL/glass-mont-PRO

Material
Stainless steel AISI 304
Surface finish
Raw
409,80 Kč
without VAT
495,86 Kč with VAT
In stock (24 units)
PCS
Kotva chemická 300ml - Polyester Kotva chemická 300ml - Polyester

Chemical anchor 300ml - Polyester Q5/01GFP-300

Material
Chemicals
Use
Anchoring
Required products
163,00 Kč
without VAT
197,23 Kč with VAT
In stock (344 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Záslepka pro profil Al/0004-S-E

End cap for profile Al/0004-S-E AL/0034-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
179,60 Kč
without VAT
217,32 Kč with VAT
In stock (3663 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

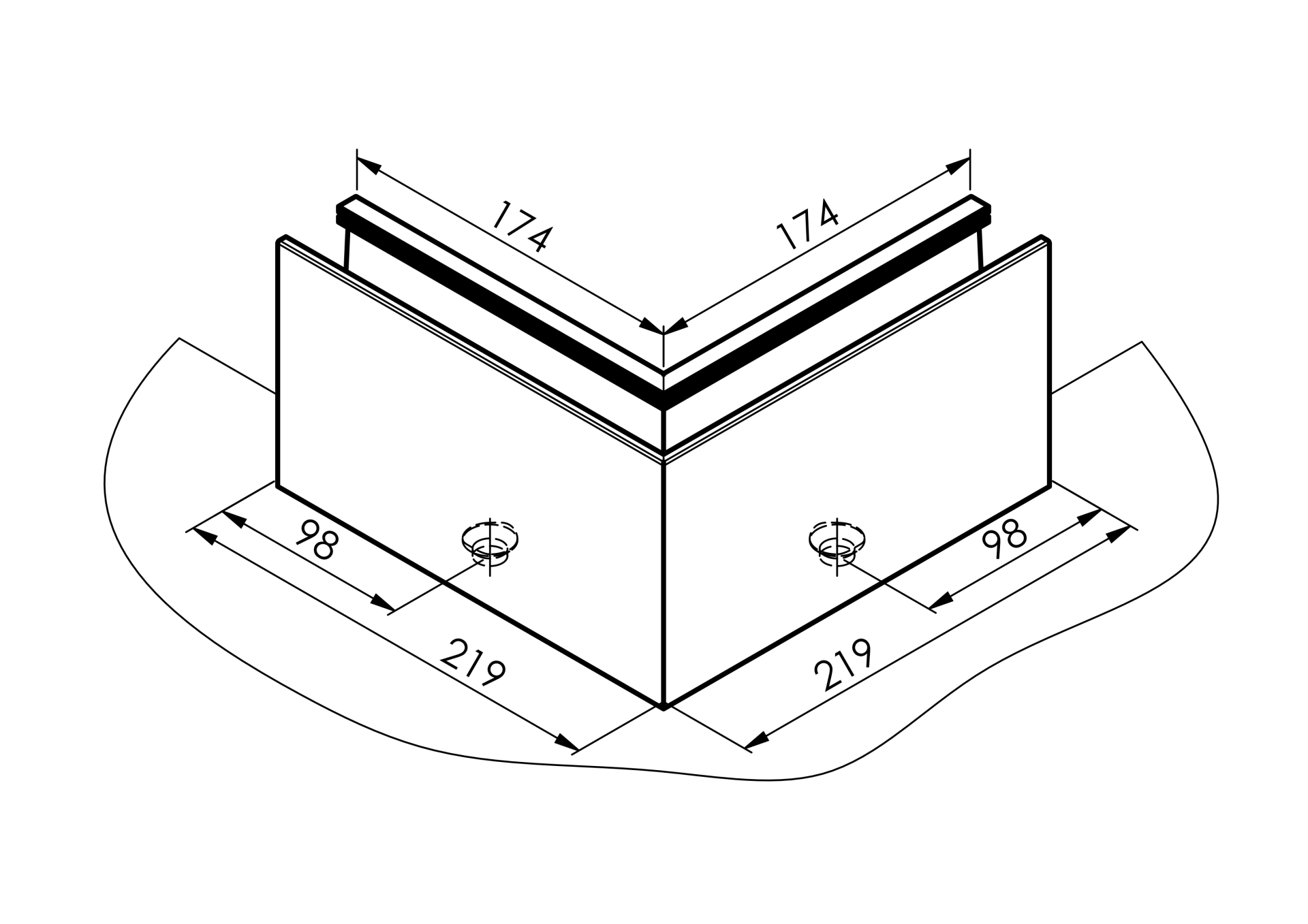

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Al kotvící profil - kotvění vrchní lišta odvodnení

Top mount - glass drainage profile AL/0004-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
187,10 Kč
without VAT
226,39 Kč with VAT
Low stock (19 units)
PCS
Čiré, kalené lepené sklo

Tempered laminated glass, clear GS/12,76-100x90-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
12,76
1.671,50 Kč
without VAT
2.022,52 Kč with VAT
Very low stock (4 units)
PCS
Sklo - čiré, kalené, lepené

Tempered laminated glass, clear GS/16,76-100x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
2.217,60 Kč
without VAT
2.683,30 Kč with VAT
In stock (450 units)
PCS
Povrchová úprava praškovým lakováním.

Surface treatment with powder coating. RAL-AL/0004, 0005, 0041

Surface finish
Color
Required products
Out of stock
249,50 Kč
without VAT
301,90 Kč with VAT
Backordered
M
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Alternatives
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.863,20 Kč
without VAT
9.514,47 Kč with VAT
In stock (403 units)
PCS
Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-ECO-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.001,50 Kč
without VAT
3.631,82 Kč with VAT
In stock (297 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Pomůcka na montaž skla do AL-PRO profilů

Glass mounting tool for AL-PRO profiles AL/glass-mont-PRO

Material
Stainless steel AISI 304
Surface finish
Raw
409,80 Kč
without VAT
495,86 Kč with VAT
In stock (24 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

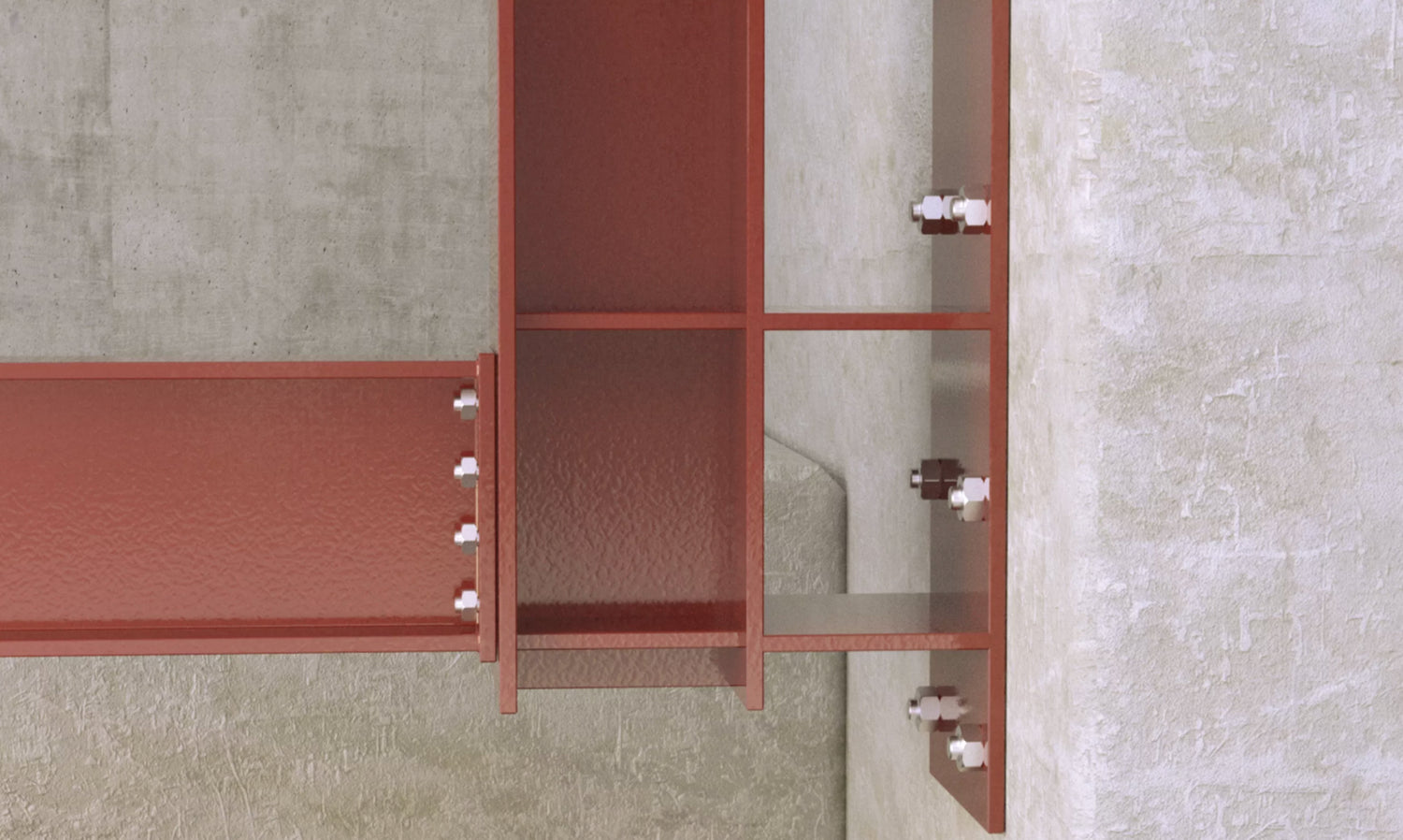

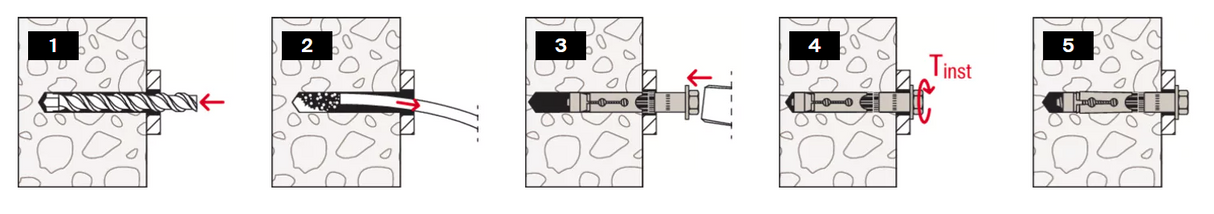

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Záslepka pro profil Al/0004-S-E

End cap for profile Al/0004-S-E AL/0034-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
179,60 Kč
without VAT
217,32 Kč with VAT
In stock (3663 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Al kotvící profil - kotvění vrchní lišta odvodnení

Top mount - glass drainage profile AL/0004-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
187,10 Kč
without VAT
226,39 Kč with VAT
Low stock (19 units)
PCS
Čiré, kalené lepené sklo

Tempered laminated glass, clear GS/12,76-100x80-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
12,76
1.485,80 Kč
without VAT
1.797,82 Kč with VAT
In stock (87 units)
PCS
Čiré, kalené lepené sklo

Tempered laminated glass, clear GS/12,76-110x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
12,76
Out of stock
2.043,00 Kč
without VAT
2.472,03 Kč with VAT
Backordered
PCS
Čiré, kalené lepené sklo VSG/ESG

Clear, laminated tempered glass GS/16,76-120x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
2.661,10 Kč
without VAT
3.219,93 Kč with VAT
In stock (49 units)
PCS
Povrchová úprava praškovým lakováním.

Surface treatment with powder coating. RAL-AL/0004, 0005, 0041

Surface finish
Color
Required products
Out of stock
249,50 Kč
without VAT
301,90 Kč with VAT
Backordered
M
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL AL/0004-1250-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.719,20 Kč
without VAT
2.080,23 Kč with VAT
Low stock (14 units)
PCS
Alternatives
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Pomůcka na montaž skla do AL-PRO profilů

Glass mounting tool for AL-PRO profiles AL/glass-mont-PRO

Material
Stainless steel AISI 304
Surface finish
Raw
409,80 Kč
without VAT
495,86 Kč with VAT
In stock (24 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

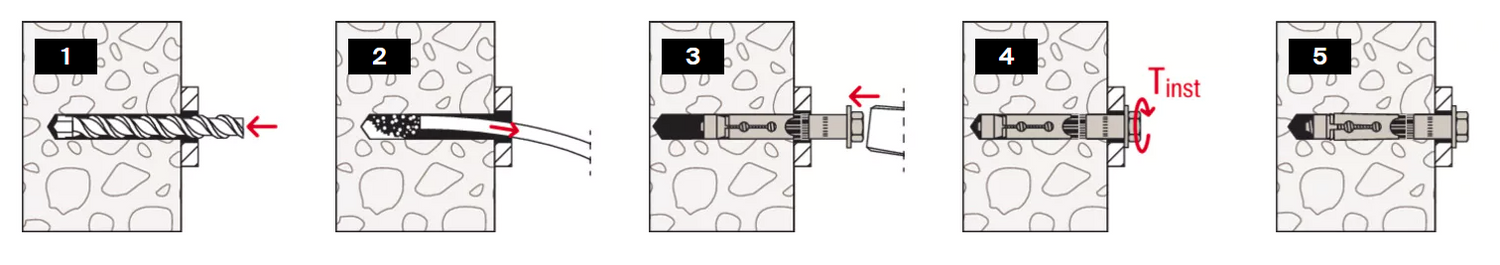

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Záslepka pro profil Al/0004-S-E

End cap for profile Al/0004-S-E AL/0034-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
179,60 Kč
without VAT
217,32 Kč with VAT
In stock (3663 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Al kotvící profil - kotvění vrchní lišta odvodnení

Top mount - glass drainage profile AL/0004-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
187,10 Kč
without VAT
226,39 Kč with VAT
Low stock (19 units)
PCS
Sklo - číre, lepené Sklo - číre, lepené
Sale

Clear, laminated glass GS/16,76-120x110-VSG

Material
Glass
Surface finish
Hardened
Glass t
16,76
2.269,40 Kč
without VAT
2.745,97 Kč with VAT
In stock (37 units)
PCS
Povrchová úprava praškovým lakováním.

Surface treatment with powder coating. RAL-AL/0004, 0005, 0041

Surface finish
Color
Required products
Out of stock
249,50 Kč
without VAT
301,90 Kč with VAT
Backordered
M
Al kotvící profil - kotvení vrchní Al kotvící profil - kotvení vrchní

Aluminium profile for glass railing -top anchoring AL/0008-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
11.638,10 Kč
without VAT
14.082,10 Kč with VAT
In stock (192 units)
PCS
Alternatives
Related products
Technical info
Al kotvící profil - kotvení vrchní Al kotvící profil - kotvení vrchní

Top anchoring 3kN AL/0008-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
5.911,20 Kč
without VAT
7.152,55 Kč with VAT
In stock (33 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0008-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Out of stock
2.227,50 Kč
without VAT
2.695,28 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0008-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Out of stock
2.224,50 Kč
without VAT
2.691,65 Kč with VAT
Backordered
PCS
Šroub se zápustnou hlavou s vnitřním šestihranem, AISI316, M12x30

Hexagon socket countersunk head screw, AISI316, M12x30 A4-DIN 7991 M12x30

Material
Stainless steel AISI 316
Surface finish
Raw
L
30
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotvění vrchní SL sklo těsnění Kotvění vrchní SL sklo těsnění

Glass inlay A19/0008-026-05.0

Material
EPDM/Plastic
Glass t
25,52
L
5000
938,80 Kč
without VAT
1.135,95 Kč with VAT
In stock (119 units)
SET
Kotva nerezová pro velké zatížení, INOX, M12

Steel anchor, M12 Q5/08-VI-IG-M12-125/S

Material
Steel
L
125
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M12-125/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
12
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Záslepka pro profil AL/0008-S-E a AL/0009-S-E

End cap for profiles AL/0008-S-E and AL/0009-S-E AL/0038-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
239,50 Kč
without VAT
289,80 Kč with VAT
In stock (316 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Al kotvící profil-boční kotvení Al kotvící profil-boční kotvení

Side Mounted Channel profile - Anodized AL/0009-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
10.001,00 Kč
without VAT
12.101,21 Kč with VAT
Backordered
PCS
Alternatives
Required products
Related products
Technical info
Al kotvící profil-boční kotvení Al kotvící profil-boční kotvení

Side Mounted Channel profile - Anodized AL/0009-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
5.457,80 Kč
without VAT
6.603,94 Kč with VAT
In stock (39 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0009-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
2.227,50 Kč
without VAT
2.695,28 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0009-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
2.224,20 Kč
without VAT
2.691,28 Kč with VAT
Backordered
PCS
Záslepka pro AL profil, PVC, D25mm Záslepka pro AL profil, PVC, D25mm

End cap for AL profile, PVC, D25mm A24/0005-007

Material
Plastic
D
25
d
30
11,70 Kč
without VAT
14,16 Kč with VAT
In stock (4564 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Šroub se zápustnou hlavou s vnitřním šestihranem, AISI316, M12x30

Hexagon socket countersunk head screw, AISI316, M12x30 A4-DIN 7991 M12x30

Material
Stainless steel AISI 316
Surface finish
Raw
L
30
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotvění vrchní SL sklo těsnění Kotvění vrchní SL sklo těsnění

Glass inlay A19/0008-026-05.0

Material
EPDM/Plastic
Glass t
25,52
L
5000
938,80 Kč
without VAT
1.135,95 Kč with VAT
In stock (119 units)
SET
Kotva nerezová pro velké zatížení, INOX, M12

Steel anchor, M12 Q5/08-VI-IG-M12-125/S

Material
Steel
L
125
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M12-125/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
12
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Záslepka pro profil AL/0008-S-E a AL/0009-S-E

End cap for profiles AL/0008-S-E and AL/0009-S-E AL/0038-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
239,50 Kč
without VAT
289,80 Kč with VAT
In stock (316 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.863,20 Kč
without VAT
9.514,47 Kč with VAT
In stock (403 units)
PCS
Alternatives
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-ECO-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.068,30 Kč
without VAT
8.552,64 Kč with VAT
In stock (442 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Pomůcka na montaž skla do AL-PRO profilů

Glass mounting tool for AL-PRO profiles AL/glass-mont-PRO

Material
Stainless steel AISI 304
Surface finish
Raw
409,80 Kč
without VAT
495,86 Kč with VAT
In stock (24 units)
PCS
Kotvění vrchní SL sklo těsnění Kotvění vrchní SL sklo těsnění

Glass inlay A19/0004-021-06.0

Material
EPDM/Plastic
Glass t
20,76
L
6000
1.259,00 Kč
without VAT
1.523,39 Kč with VAT
In stock (137 units)
SET
Kotvění vrchní SL sklo těsnění Kotvění vrchní SL sklo těsnění

Glass inlay A19/0004-022-06.0

Material
EPDM/Plastic
Glass t
21,52
L
6000
1.266,20 Kč
without VAT
1.532,10 Kč with VAT
In stock (137 units)
SET
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Záslepka pro profil Al/0004-S-E

End cap for profile Al/0004-S-E AL/0034-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
179,60 Kč
without VAT
217,32 Kč with VAT
In stock (3663 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Al kotvící profil - kotvění vrchní lišta odvodnení

Top mount - glass drainage profile AL/0004-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
187,10 Kč
without VAT
226,39 Kč with VAT
Low stock (19 units)
PCS
Čiré, kalené lepené sklo

Tempered laminated glass, clear GS/16,76-100x70-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
1.552,30 Kč
without VAT
1.878,28 Kč with VAT
In stock (108 units)
PCS
Čiré, kalené lepené sklo

Tempered laminated glass, clear GS/16,76-100x80-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
1.774,10 Kč
without VAT
2.146,66 Kč with VAT
In stock (85 units)
PCS
Sklo - čiré, kalené, lepené

Tempered laminated glass, clear GS/16,76-100x90-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
1.995,80 Kč
without VAT
2.414,92 Kč with VAT
In stock (285 units)
PCS
Sklo - číre, kalené, lepené

Tempered laminated glass, clear GS/16,76-100x95-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
2.106,70 Kč
without VAT
2.549,11 Kč with VAT
In stock (29 units)
PCS
Sklo - čiré, kalené, lepené

Tempered laminated glass, clear GS/16,76-100x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
2.217,60 Kč
without VAT
2.683,30 Kč with VAT
In stock (450 units)
PCS
Čiré, kalené lepené sklo VSG/ESG

Clear, laminated tempered glass GS/16,76-120x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
2.661,10 Kč
without VAT
3.219,93 Kč with VAT
In stock (49 units)
PCS
Povrchová úprava praškovým lakováním.

Surface treatment with powder coating. RAL-AL/0004, 0005, 0041

Surface finish
Color
Required products
Out of stock
249,50 Kč
without VAT
301,90 Kč with VAT
Backordered
M

Doporučené produkty

Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Required products
Related products
Technical info
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL AL/0004-1250-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.719,20 Kč
without VAT
2.080,23 Kč with VAT
Low stock (14 units)
PCS
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.863,20 Kč
without VAT
9.514,47 Kč with VAT
In stock (403 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

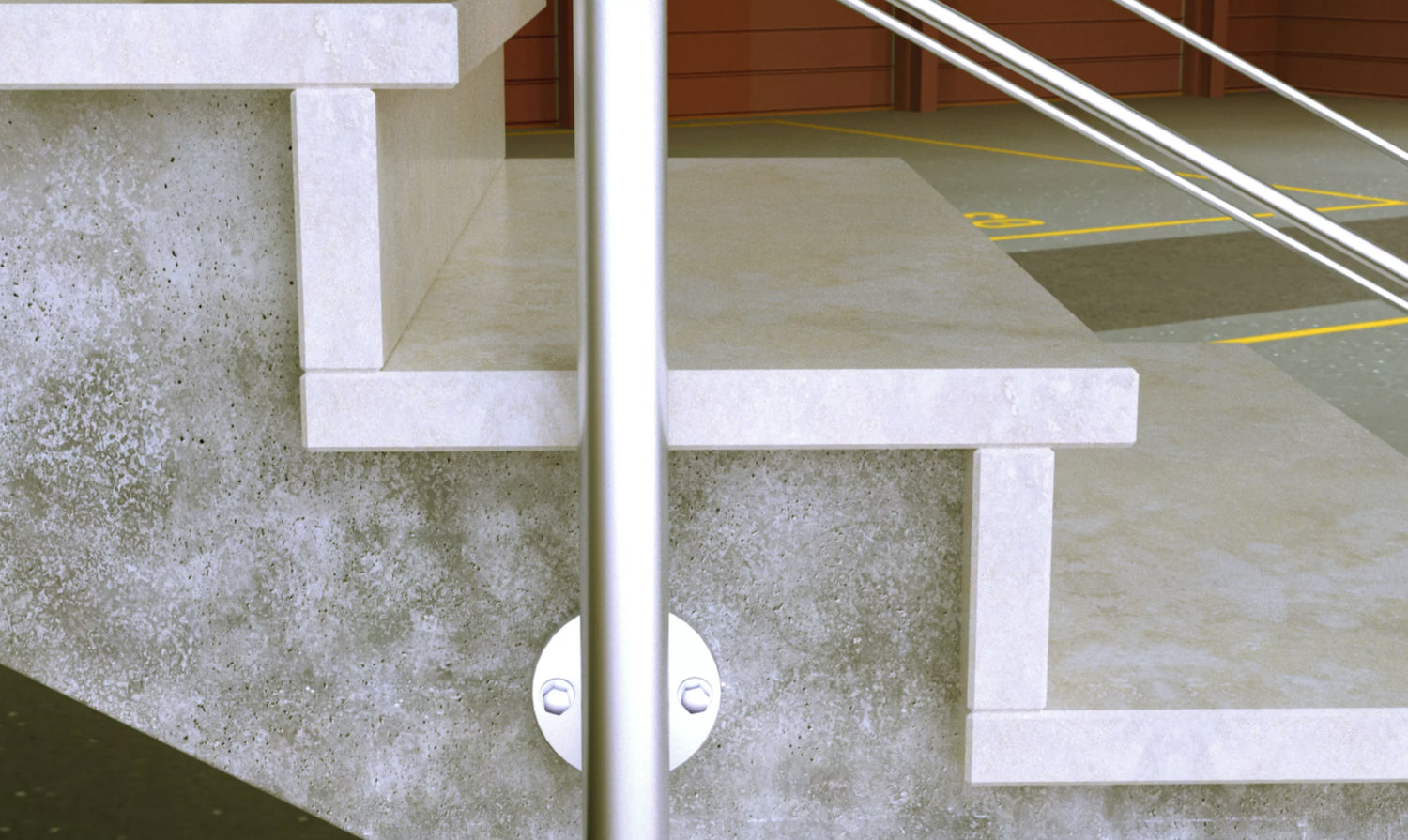

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Al kotvící profil-boční kotvení Al kotvící profil-boční kotvení

Side Mounted Channel profile - Anodized AL/0009-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
5.457,80 Kč
without VAT
6.603,94 Kč with VAT
In stock (39 units)
PCS
Alternatives
Required products
Related products
Technical info
Al kotvící profil-boční kotvení Al kotvící profil-boční kotvení

Side Mounted Channel profile - Anodized AL/0009-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
10.001,00 Kč
without VAT
12.101,21 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0009-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
2.227,50 Kč
without VAT
2.695,28 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0009-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
21,52-25,52
Required products
Out of stock
2.224,20 Kč
without VAT
2.691,28 Kč with VAT
Backordered
PCS
Záslepka pro AL profil, PVC, D25mm Záslepka pro AL profil, PVC, D25mm

End cap for AL profile, PVC, D25mm A24/0005-007

Material
Plastic
D
25
d
30
11,70 Kč
without VAT
14,16 Kč with VAT
In stock (4564 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Šroub se zápustnou hlavou s vnitřním šestihranem, AISI316, M12x30

Hexagon socket countersunk head screw, AISI316, M12x30 A4-DIN 7991 M12x30

Material
Stainless steel AISI 316
Surface finish
Raw
L
30
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotvění vrchní SL sklo těsnění Kotvění vrchní SL sklo těsnění

Glass inlay A19/0008-026-02.5

Material
EPDM/Plastic
Glass t
25,52
L
2500
490,30 Kč
without VAT
593,26 Kč with VAT
In stock (50 units)
SET
Kotva nerezová pro velké zatížení, INOX, M12

Steel anchor, M12 Q5/08-VI-IG-M12-125/S

Material
Steel
L
125
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M12-125/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
12
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Záslepka pro profil AL/0008-S-E a AL/0009-S-E

End cap for profiles AL/0008-S-E and AL/0009-S-E AL/0038-004-S-E

Material
Aluminium
Surface finish
Satin-ELOX
239,50 Kč
without VAT
289,80 Kč with VAT
In stock (316 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Al kotvící profil - kotvění vrchní

Aluminum profile for glass AL/0004-5000-S-VA-EXCLUSI

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Required products
5.379,00 Kč
without VAT
6.508,59 Kč with VAT
In stock (413 units)
PCS
Alternatives
Required products
Related products
Technical info
Al kotvící profil - kotvění vrchní

Aluminum profile for glass AL/0004-2500-S-VA-EXCLUSI

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Required products
Out of stock
3.312,50 Kč
without VAT
4.008,13 Kč with VAT
Backordered
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Pomůcka na montaž skla do AL-PRO profilů

Glass mounting tool for AL-PRO profiles AL/glass-mont-PRO

Material
Stainless steel AISI 304
Surface finish
Raw
409,80 Kč
without VAT
495,86 Kč with VAT
In stock (24 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Záslepka pro profil AL/0004-S-VA-EXCLUSI

End cap for profile AL/0004-S-VA-EXCLUSI AL/0034-004-S-VA-EX

Material
Aluminium
Surface finish
Satin-INOX
239,50 Kč
without VAT
289,80 Kč with VAT
In stock (41 units)
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-IN

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Out of stock
1.483,00 Kč
without VAT
1.794,43 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-OUT

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
1.593,90 Kč
without VAT
1.928,62 Kč with VAT
Very low stock (5 units)
PCS
Gumové těsnění mezi skla

Rubber seal between the glasses, black A19/0004-D-B-100

Material
EPDM
Surface finish
Raw
Glass t
12,00-21,52
Required products
55,40 Kč
without VAT
67,03 Kč with VAT
In stock (2822 units)
PCS
Sklo - čiré, kalené, lepené

Tempered laminated glass, clear GS/16,76-110x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
2.439,40 Kč
without VAT
2.951,67 Kč with VAT
In stock (444 units)
PCS
Sklo - čiré, kalené, lepené

Tempered laminated glass, clear GS/16,76-100x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
2.217,60 Kč
without VAT
2.683,30 Kč with VAT
In stock (450 units)
PCS
Čiré, kalené lepené sklo VSG/ESG

Clear, laminated tempered glass GS/16,76-120x100-VSG/ESG

Material
Glass
Surface finish
Hardened
Glass t
16,76
Required products
2.661,10 Kč
without VAT
3.219,93 Kč with VAT
In stock (49 units)
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-IN

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Out of stock
1.483,00 Kč
without VAT
1.794,43 Kč with VAT
Backordered
PCS
Related products
Technical info
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Al kotvící profil - kotvění vrchní

Aluminum profile for glass AL/0004-5000-S-VA-EXCLUSI

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Required products
5.379,00 Kč
without VAT
6.508,59 Kč with VAT
In stock (413 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-OUT

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
1.593,90 Kč
without VAT
1.928,62 Kč with VAT
Very low stock (5 units)
PCS
Related products
Technical info
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Al kotvící profil - kotvění vrchní

Aluminum profile for glass AL/0004-5000-S-VA-EXCLUSI

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Required products
5.379,00 Kč
without VAT
6.508,59 Kč with VAT
In stock (413 units)
PCS
Kotva nerezová pro velké zatížení, INOX, M8

Steel anchor, M8 Q5/08-VI-IG-M8-100/S

Material
Steel
L
100
Use
Anchoring
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kotva nerezová pro velké zatížení, INOX

Stainless steel anchor A5/08-VI-IG-M8-100/A4

Material
Stainless steel AISI 316
Use
Anchoring
M
8
Out of stock
0,00 Kč
without VAT
0,00 Kč with VAT
Backordered
PCS
Kužeľová skrutka + kuž. podložka, M8, Zn, SW=T40

Taper screw with taper washer, M8, Zn, SW=T40 W-DIN 7991 M8x20-P

Material
Steel
Surface finish
Galvanized
Required products
95,60 Kč
without VAT
115,68 Kč with VAT
Very low stock (4 units)
PCS

Alternatívne produkty

Vysoce výkonná kotva se zápustnou hlavou M8

Heavy duty anchor with countersunk screw M8 Q5/08-12-125

Material
Steel
Surface finish
Galvanized
L
120
44,30 Kč
without VAT
53,60 Kč with VAT
In stock (3286 units)
PCS
Alternatives
Technical info
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou M8, nerezová

Heavy duty anchor with countersunk screw M8, stainless steel A5/08-12-125

Material
Stainless steel AISI 304
Surface finish
Raw
L
120
68,10 Kč
without VAT
82,40 Kč with VAT
In stock (4248 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou M8, nerezová

Heavy duty anchor with countersunk screw M8, stainless steel A5/08-12-125

Material
Stainless steel AISI 304
Surface finish
Raw
L
120
68,10 Kč
without VAT
82,40 Kč with VAT
In stock (4248 units)
PCS
Alternatives
Technical info
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou M8

Heavy duty anchor with countersunk screw M8 Q5/08-12-125

Material
Steel
Surface finish
Galvanized
L
120
44,30 Kč
without VAT
53,60 Kč with VAT
In stock (3286 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou M8 Vysoce výkonná kotva se zápustnou hlavou M8

Heavy duty anchor with countersunk screw M8 Q5/08-HAZ-M8-80SK/S

Material
Steel
Surface finish
Galvanized
L
80
69,90 Kč
without VAT
84,58 Kč with VAT
In stock (52 units)
PCS
Alternatives
Related products
Technical info
Kotva pro středně těžké zatížení se zápustnou hlavou M8 Kotva pro středně těžké zatížení se zápustnou hlavou M8

Anchor for medium heavy loads with countersunk head M8 Q5/08-M8-75SK/S

Material
Steel
Surface finish
Galvanized
L
75
31,40 Kč
without VAT
37,99 Kč with VAT
In stock (786 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou Vysoce výkonná kotva se zápustnou hlavou

Heavy duty anchor with countersunk screw Q5/08-FH12-50

Material
Steel
Surface finish
Galvanized
L
125
Required products
64,40 Kč
without VAT
77,92 Kč with VAT
In stock (21207 units)
PCS
Hliníkový kotvící profil - boční kotvení

Aluminium profile - side mounting AL/0005-D-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.179,50 Kč
without VAT
8.687,20 Kč with VAT
In stock (892 units)
PCS
Al kotvící profil - kotvení boční

Side mount- glasss AL/0005-D-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.742,20 Kč
without VAT
4.528,06 Kč with VAT
In stock (186 units)
PCS
Kotvení boční - sklo AL/ELOX/Satin, L245, 90° OUT

AL profile, side mounting, 90°conector AL/ELOX/Sat AL/0005-D-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
1.483,00 Kč
without VAT
1.794,43 Kč with VAT
In stock (43 units)
PCS
Kotvení boční - sklo AL/ELOX/Satin, L245, 90° in

AL profile, side mount- 90°conector AL/ELOX/Satin AL/0005-D-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (36 units)
PCS
Hliníkový kotvící profil - boční kotvení

Aluminium profile - side mounting AL/0005-D-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
9.760,40 Kč
without VAT
11.810,08 Kč with VAT
In stock (290 units)
PCS
Al kotvící profil - kotvení boční

Side mount- glasss AL/0005-D-1250-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
2.127,20 Kč
without VAT
2.573,91 Kč with VAT
Low stock (9 units)
PCS
Al kotvící profil - kotvení boční

Side mount- glasss AL/0005-D-2500-S-EB

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
4.202,00 Kč
without VAT
5.084,42 Kč with VAT
In stock (65 units)
PCS
Hliníkový kotvící profil - boční kotvení

Aluminium profile - side mounting AL/0005-D-5000-S-EB

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
8.315,70 Kč
without VAT
10.062,00 Kč with VAT
In stock (134 units)
PCS
Hliníkový kotvící profil - boční kotvení

Aluminium profile - side mounting AL/0005-D-5000-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
8.131,30 Kč
without VAT
9.838,87 Kč with VAT
In stock (57 units)
PCS
Nerezová kotva

INOX anchor A5/08-105x11xM8

Material
Stainless steel AISI 304
Surface finish
Raw
Use
Anchoring
63,80 Kč
without VAT
77,20 Kč with VAT
In stock (5179 units)
PCS
Alternatives
Related products
Technical info
Nerezová kotva, AISI 316

INOX anchor, AISI 316 A14/08-105x11xM8

Material
Stainless steel AISI 316
Surface finish
Raw
Use
Anchoring
65,50 Kč
without VAT
79,26 Kč with VAT
In stock (1757 units)
PCS
Nerezová kotva M8, L=140mm Nerezová kotva M8, L=140mm

Inox anchor M8, L=140mm A19/27-M8

Material
Stainless steel AISI 304
Surface finish
Satined
Shape
Round bar
68,80 Kč
without VAT
83,25 Kč with VAT
In stock (2370 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

AL. profile, top mount 90° IN corner AL/ELOX/Sati AL/0004-S-E-90-IN

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.334,20 Kč
without VAT
1.614,38 Kč with VAT
In stock (30 units)
PCS
Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm, Kotvění vrchní - sklo hliník AL/ELOX/Satin L195mm,

Top mount - glass AL/ELOX/Satin L195mm, 90°out AL/0004-S-E-90-OUT

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.410,40 Kč
without VAT
1.706,58 Kč with VAT
In stock (51 units)
PCS
Hliníkový kotvící profil - vrchní kotvení Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-5000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
6.396,60 Kč
without VAT
7.739,89 Kč with VAT
In stock (1012 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL/0004-2500-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
3.300,60 Kč
without VAT
3.993,73 Kč with VAT
In stock (710 units)
PCS
Al kotvící profil - kotvění vrchní Al kotvící profil - kotvění vrchní

Top mount - glass AL AL/0004-1250-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
1.719,20 Kč
without VAT
2.080,23 Kč with VAT
Low stock (14 units)
PCS
Al kotvící profil - kotvění vrchní lišta odvodnení

Top mount - glass drainage profile AL/0004-S-E-Drain

Material
Aluminium
Surface finish
Satin-ELOX
187,10 Kč
without VAT
226,39 Kč with VAT
Low stock (19 units)
PCS
Al profil - boční kotvění,lišta na odvodnení

Side mount - glass drainage profile AL/0005-S-E-2500-Drain

Material
Aluminium
Surface finish
Satin-ELOX
L
2500
Required products
670,20 Kč
without VAT
810,94 Kč with VAT
In stock (168 units)
PCS
Hliníkový kotvící profil - vrchní kotvení

Aluminium profile -top mounting AL/0004-6000-S-E

Material
Aluminium
Surface finish
Satin-ELOX
Glass t
12,00-21,52
Required products
7.863,20 Kč
without VAT
9.514,47 Kč with VAT
In stock (403 units)
PCS
Al kotvící profil - kotvění vrchní

Aluminum profile for glass AL/0004-5000-S-VA-EXCLUSI

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Required products
5.379,00 Kč
without VAT
6.508,59 Kč with VAT
In stock (413 units)
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-IN

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
Out of stock
1.483,00 Kč
without VAT
1.794,43 Kč with VAT
Backordered
PCS
Kotvění vrchní - sklo hliník AL/INOX effect/Satin

Aluminum profile for glass AL/INOX effect/Satin L1 AL/0004-S-VA-EX-90-OUT

Material
Aluminium
Surface finish
Satin-INOX
Glass t
12,00-21,52
1.593,90 Kč
without VAT
1.928,62 Kč with VAT
Very low stock (5 units)
PCS
Vysoce výkonná kotva se zápustnou hlavou
umakov-cz

Heavy duty anchor with countersunk screw

64,40 Kč
The Fischer high-performance anchor with countersunk head is a sleeve anchor made of zinc-plated steel. The anchor is set in the time-saving through-type installation. When tightening the anchor, the cone is pulled into the expansion sleeve and expands it against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs the torque slippage. This means that the fixture is pulled towards the anchoring base. The Fischer high-performance anchor FH II SK with countersunk head is ideally suited to fix railings, staircases, and ladders in cracked and non-cracked concrete.

With countersunk head for assembly that is flush to the surface.
The international approvals guarantee maximum safety and maximum performance. Also for applications in earthquake regions (seismic C1 and C2).
The ideal combination of screw shank and sleeve enables a high transverse load capacity and fewer fixing points.
The optimised geometry intelligently reduces the setting energy and thus ensures a force-saving assembly.

ETA-approval: YES
Drill diameter (d0) : 12 mm
Min. drill hole depth for through fixings (h2): 130 mm
Max. fixture thickness (t fix): 50 mm
Thread (M): M8
Packaging: Folding box
Amount: 25 pcs.
GTIN (EAN-Code): 4006209449196
Seismic-Approval: C1 / C2
View product

  • Tradícia už viac ako 30 rokov

  • Široká sieť predajní

  • Tovar skladom

  • Rýchle dodanie tovaru skladom
Back to top
