A-BL/230P-042-set4

Glass clamp

Material: Stainless steel AISI 304, Surface finish: Powder coating, Filling: Glass+Sheet metal, Glass t: 6/6,76/8/8,76/10/10,76/1,5/2/3/4/5, Post: D42,4, Model: Model 230P, Effect: Black RAL 9005, Phi: 42,4

490,40 Kč
without VAT
593,38 Kč
with VAT


PCS
Stock availability
SK Krompachy > 10
CZ Říčany u Brna 0
CZ Hradec Králové 0
CZ Praha Otice 0
CZ Moravany Brno 0

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Popis

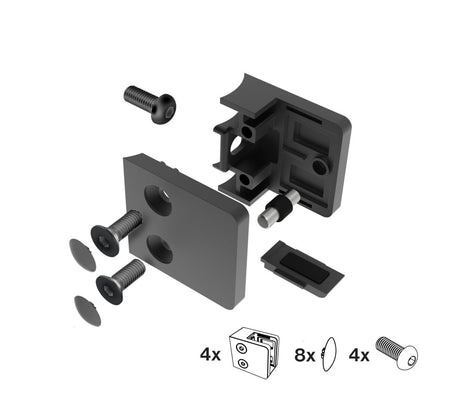

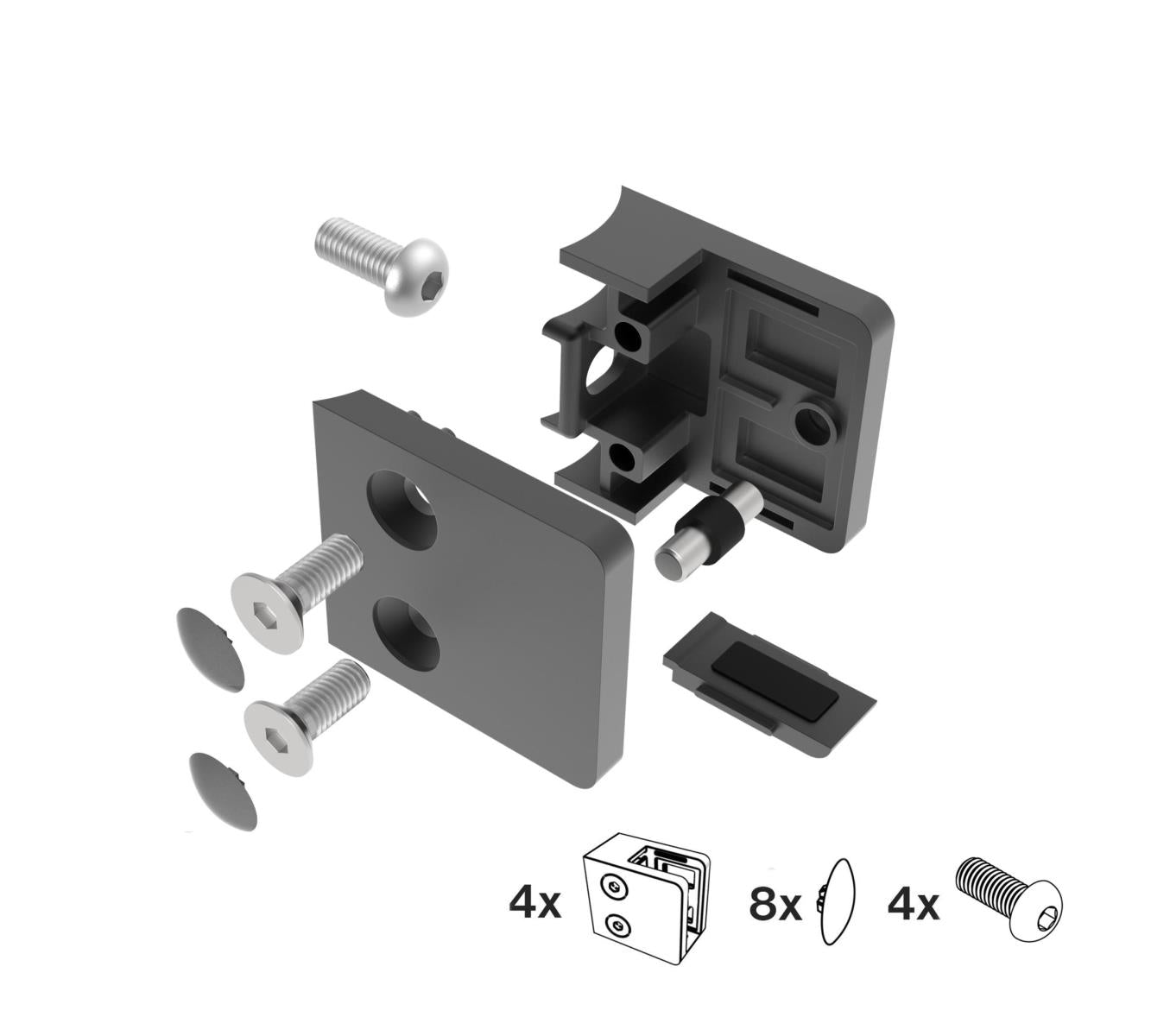

SET4 contains 4pcs glass holder color black in disassembled state + 8pcs screws A2 DIN7991 M6x16 + 8pcs PVC caps color black to cover screws A2 DIN7991 M6x16 + 4pcs screws A2 DIN 7380 M8x20. Holder for glass filling (sheet, panel filling). Glass holding (protection against falling out): clamp joint (recommended use for top mounting) or clamp joint + pin (recommended use for side mounting) or clamp joint + safety plate with lock during installation - protection against plate falling out (recommended use for side mounting). The holder does not include sealing (need to purchase 2pcs seals for holder according to glass thickness) and caps for screws.

Parametre

Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Powder coating
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/1,5/2/3/4/5
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Effect
Vyberte si farebný odtieň.
Black RAL 9005
Model
Model 230P
Post
Determines use based on the size and shape of the post
D42,4
Phi
42,4
