1 8
GS-AL/P8106/N/E-set

Fittings - sliding doors - AL profile AL

Material: Aluminium, Surface finish: Anodized, Glass t: 8-12, Recommended weight of the wing: max. 80kg, L: 3000, Anchoring: Wall, Self closing mechanism: Yes, Glass hole: No

14.052,90 Kč
without VAT
17.004,01 Kč
with VAT
SET
Stock availability
SK Krompachy 4
CZ Říčany u Brna 0
CZ Hradec Králové 0
CZ Praha Otice 1
CZ Moravany Brno 0

Kontakt

Add some general information about your delivery and shipping policies.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametre Na stiahnutie Časti zostavy Katalógový list Povinný sortiment Doporučené produkty Alternatívne produkty V setoch

Popis

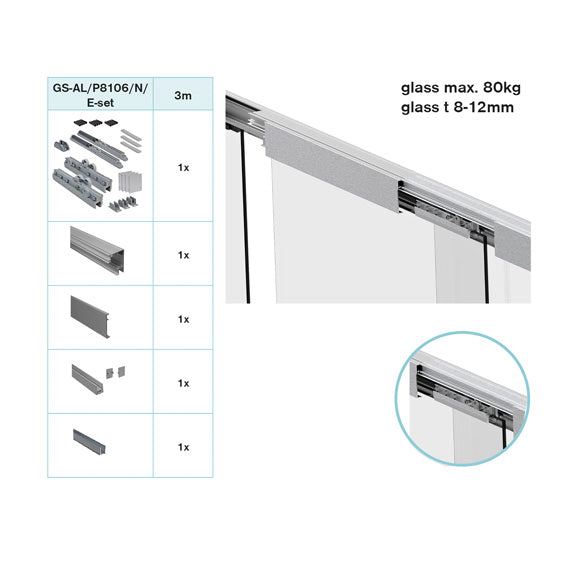

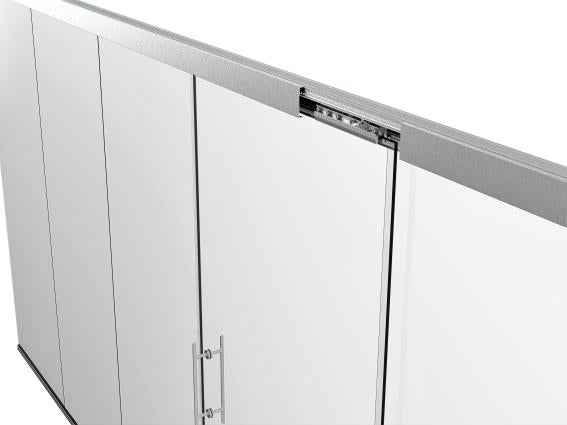

Set of fittings for glass sliding doors in the rail + solid glazing, set includes 2x trolley, AL profile guide + cover profile + U profile cover, end caps, 2x soft stop (continuously closing lock), guide. Load capacity 80kg, Glass thickness 8-12mm, L3000mm. Rubber not included.

Parametre

Kování - Posuvné dveře lišta
Material
Defines the material from which the product is made.
Aluminium
Surface finish
Surface finish of product
Anodized
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
max. 80kg
L
Length parameter of the product
3000
Anchoring
Určuje materiál, na ktorý sa ukotvuje daná položka.
Wall
Self closing mechanism
Yes
Glass t
Determines the thickness of the glass in mm the product is suitable for
8-12
Glass hole
No

Na stiahnutie

PDF
Document for download
PDF
Document for download

Časti zostavy

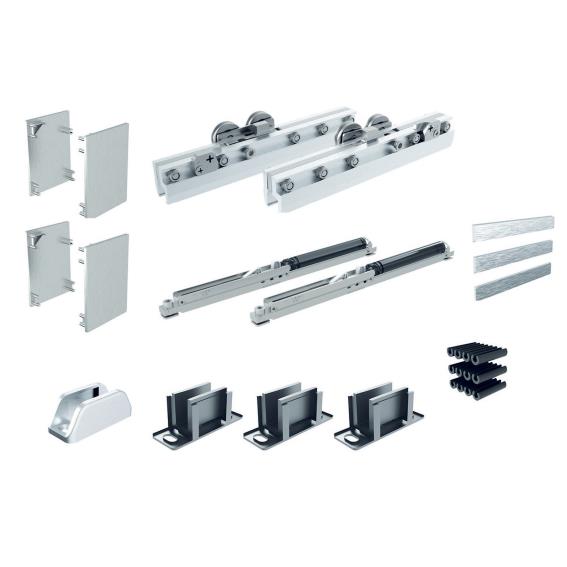

Posuv - sada príslušenstva pre GS-AL/P8106/N/E Posuv - sada príslušenstva pre GS-AL/P8106/N/E

Aluminum profile AL-Elox 21x27 mm GS-AL/P8106-DIEL

1 pcs
Material
Aluminium
Surface finish
Raw

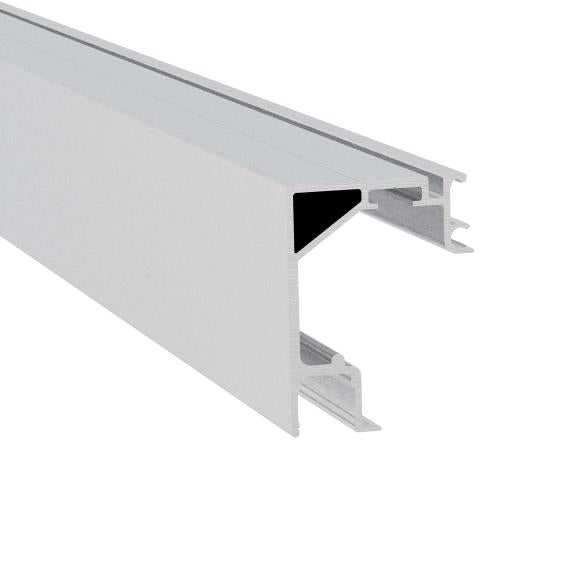

Posuv - vodící profil, pevné sklo, AL-Elox, L3000 Posuv - vodící profil, pevné sklo, AL-Elox, L3000

Aluminum profile AL-Elox GS-AL/LN8106/N/E

1 pcs
Material
Aluminium
Surface finish
Anodized
L
3000

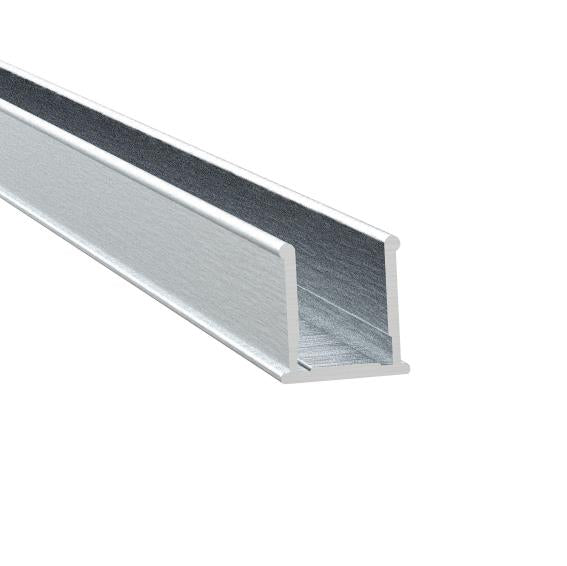

Posuv - krycí profil, AL-Elox, L3000mm Posuv - krycí profil, AL-Elox, L3000mm

Aluminum profile AL-Elox 21x27 mm GS-AL/LK8106/N/E

1 pcs
Material
Aluminium
Surface finish
Anodized
L
3000

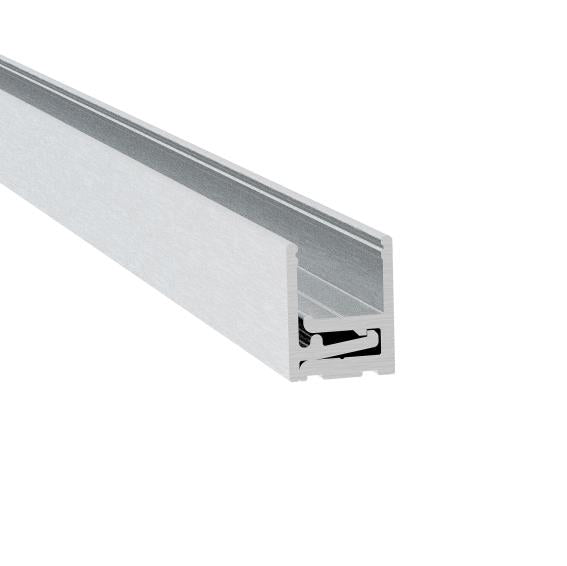

Zasklení pevné - profil U Zasklení pevné - profil U

Aluminum profile AL-Elox 21x27 mm GS-AL/ZP-21x27/N/E-DIEL

1 pcs
Material
Aluminium
Surface finish
Anodized
Glass t
8-12
Required products

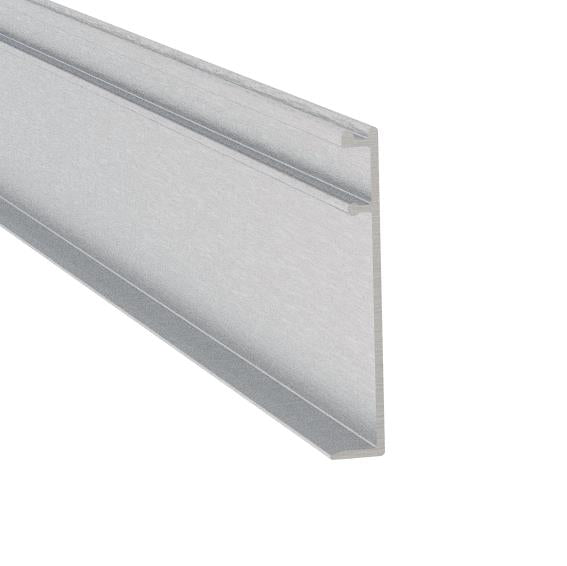

Posuv - krycí U profil, AL-Elox, 16x17mm, L3000mm Posuv - krycí U profil, AL-Elox, 16x17mm, L3000mm

Aluminum profile AL-Elox 21x27 mm GS-AL/LZ8106/N/E

1 pcs
Material
Aluminium
Surface finish
Anodized
L
3000

Katalog

Povinný sortiment

Těsnění pro profil GS-AL/ZP-21x27, L3000mm Těsnění pro profil GS-AL/ZP-21x27, L3000mm

Rubber sealing for glass GS-AL/ZP-21x27, L3000mm GS-PVC/ZP-2127-8/N/T

Material
Plastic
L
3000
Glass t
8
195,10 Kč
without VAT
236,07 Kč with VAT
Very low stock (8 units)
PCS
Related products
Zasklení pevné - profil U
Sale

Aluminum profile AL-Elox 21x27 mm GS-AL/ZP-21x27/N/E

Material
Aluminium
Surface finish
Anodized
L
3000
Required products
2.426,60 Kč
without VAT
2.936,19 Kč with VAT
Very low stock (1 unit)
PCS
Těsněnií pro profil GS-AL/ZP-21x27, L3000mm Těsněnií pro profil GS-AL/ZP-21x27, L3000mm

Rubber sealing for glass GS-AL/ZP-21x27 GS-PVC/ZP-2127-10/N/T

Material
Plastic
L
3000
Glass t
10
190,70 Kč
without VAT
230,75 Kč with VAT
In stock (23 units)
PCS
Related products
Zasklení pevné - profil U
Sale

Aluminum profile AL-Elox 21x27 mm GS-AL/ZP-21x27/N/E

Material
Aluminium
Surface finish
Anodized
L
3000
Required products
2.426,60 Kč
without VAT
2.936,19 Kč with VAT
Very low stock (1 unit)
PCS
Těsnění pro profil GS-AL/ZP-21x27, L3000mm Těsnění pro profil GS-AL/ZP-21x27, L3000mm

Rubber sealing for glass GS-AL/ZP-21x27, L3000mm GS-PVC/ZP-2127-12/N/T

Material
Plastic
L
3000
Glass t
12
133,90 Kč
without VAT
162,02 Kč with VAT
Very low stock (3 units)
PCS
Related products
Zasklení pevné - profil U
Sale

Aluminum profile AL-Elox 21x27 mm GS-AL/ZP-21x27/N/E

Material
Aluminium
Surface finish
Anodized
L
3000
Required products
2.426,60 Kč
without VAT
2.936,19 Kč with VAT
Very low stock (1 unit)
PCS
